Knowing how to test a diesel fuel injector without removing it helps you quickly identify engine problems like rough idle, misfires, power loss, and poor fuel efficiency without wasting time on unnecessary teardown. The fastest way to diagnose injector health is by analyzing engine behavior and performing simple in-engine tests while the injector is still installed.
In modern diesel engines, injector issues often look identical to ECM faults or fuel system problems. Because of this overlap, many truck owners end up replacing injectors unnecessarily. A proper testing process helps confirm whether the injector is actually faulty or if the issue is coming from fuel pressure, wiring, or electronic control.
At JJ Engine Parts, we help diesel operators across the USA with reliable injectors, ECM units, and heavy-duty engine components that support accurate diagnostics and long-term engine performance.
Why Testing Injectors Without Removing Them Is Critical
Replacing diesel injectors without proper testing is one of the most expensive mistakes in engine repair. These components are precision-built, and premature replacement leads to unnecessary cost and downtime.
In real-world diagnostics, injector-like symptoms are often caused by other systems. For example:
- Unstable fuel pressure can mimic injector failure
- Electrical wiring faults can interrupt injector signals
- ECM miscommunication can trigger false injector codes
This is why professional technicians always begin with in-engine testing before removal.
Step 1: Start With Real-World Engine Symptoms
Before using any diagnostic tools, the engine itself gives early warning signs. A failing injector usually affects how the engine behaves under idle and load.
Instead of guessing, observe how the truck responds during operation. Common symptoms include rough idle, hesitation during acceleration, uneven engine sound, or visible smoke from the exhaust.
These symptoms help narrow down the affected cylinder, but they do not confirm injector failure on their own. They simply guide the next step of diagnosis.
Step 2: Perform a Cylinder Cut-Out Test

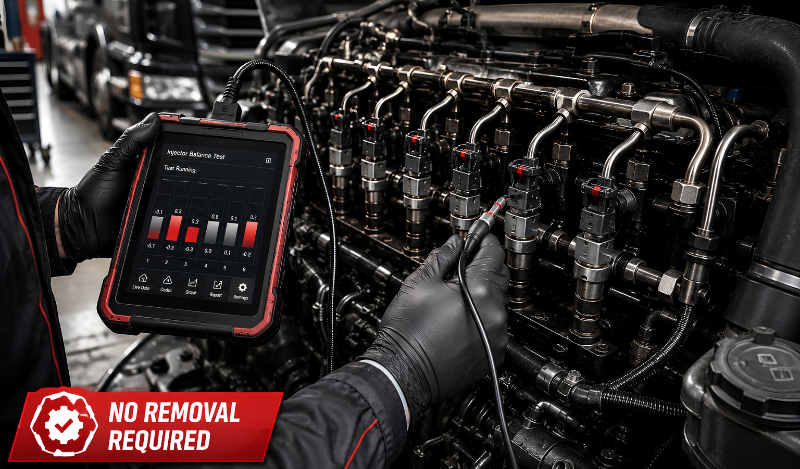

A cylinder cut-out test is one of the most accurate ways to test injectors without removing them. It is performed using a scan tool that disables injectors one at a time while the engine is running.
If a specific injector is turned off and there is little or no change in engine performance, it may indicate that the injector is already weak or not functioning properly. However, if the engine reacts strongly when the injector is disabled, it means that the cylinder is contributing normally.
This test is widely used in diesel diagnostics because it isolates injector performance without dismantling the engine.
Step 3: Listen to Injector Operation for Quick Diagnosis
A simple yet effective method used by experienced technicians is listening to injector operation using a mechanic's stethoscope. Each injector produces a consistent clicking sound when firing correctly.
A healthy injector produces a steady, uniform rhythm. If the sound is weak, irregular, or missing completely, it may indicate an injector malfunction or electrical issues affecting injector operation.
While this is not a complete diagnostic method, it is extremely useful for quick field checks.
Step 4: Check Fuel Return Flow for Hidden Injector Wear
Fuel return flow testing helps detect internal injector wear that may not show obvious symptoms yet. When injectors begin to fail internally, they often allow excess fuel to leak back through the return line.
This results in higher-than-normal return flow, which indicates reduced injection efficiency. In many cases, this is one of the earliest signs of injector degradation before complete failure occurs.
Key takeaway:
- Higher return flow = possible internal injector wear
- Consistent flow across cylinders = healthy injectors
Step 5: Scan for ECM Fault Codes and Electrical Issues
Modern diesel engines rely heavily on ECM control, making electronic diagnostics essential. Injector-related fault codes, such as Cummins ISX fuel injector codes, often indicate issues with timing, electrical communication, or injector control signals.
In some cases, multiple injector codes appearing together suggest that the ECM or wiring system may be the real issue rather than the injectors themselves. This is especially common in advanced systems like Cummins engines.
If ECM failure is suspected, replacement solutions such as a diesel ECM for sale become part of the repair decision process.
Step 6: Verify Fuel Pressure Stability
Fuel pressure is one of the most overlooked causes of injector-related symptoms. Even a perfectly healthy injector will not function correctly if fuel pressure is unstable or insufficient.
A proper fuel pressure test helps separate fuel system issues from injector problems. If pressure drops under load or fluctuates inconsistently, the issue may lie in the fuel supply system rather than the injector itself.
Injector vs ECM vs Fuel System – How to Identify the Real Problem
Correct diagnosis is the key to avoiding unnecessary repairs. Injector, ECM, and fuel system problems often produce similar symptoms, which is why many repairs fail when based on guesswork.
A simple way to understand the difference:
- Injector issue → usually affects one cylinder consistently
- ECM issue → affects multiple cylinders or causes random faults
- Fuel system issue → affects overall engine performance
Understanding system differences is also important because, in common rail vs unit injector diesel setups, fault symptoms and injector response patterns can vary, even when the underlying issue appears similar.
Common Mistakes That Lead to Wrong Injector Replacement
Many repair failures happen because technicians skip proper diagnostics. One of the most common mistakes is replacing injectors without checking wiring or fuel pressure first.
Another major issue is ignoring ECM-related faults, which can create symptoms identical to injector failure. These mistakes lead to repeated breakdowns and higher repair costs.
Proper testing ensures you only replace what actually needs replacement.
For example, issues like Caterpillar C15 injector cup replacement are sometimes misdiagnosed as injector failure when the actual problem lies in the injector cup or sealing surface.
When Injector Replacement Is Actually Necessary
Injector replacement should only be done after confirming internal failure through testing. If a cylinder consistently fails cut-out tests, shows excessive return flow, and wiring and fuel systems are verified as normal, then injector replacement becomes necessary.
In such cases, using quality parts is critical for long-term reliability. You can explore options like a fuel injector for sale for dependable replacements.
Where to Get Reliable Diesel Engine Parts
Once the diagnosis confirms a failure, choosing the right replacement components becomes the next important step. Reliable parts ensure long-term engine performance and reduce repeat failures.
You can explore trusted solutions like Cummins engine parts for injectors, ECM units, and other heavy-duty diesel components.
At JJ Engine Parts, we provide dependable diesel engine parts designed for durability, performance, and reduced downtime for commercial trucks and fleets across the USA.
Frequently Asked Questions
Can you test a diesel fuel injector without removing it?
Yes, you can test a diesel fuel injector using cylinder cut-out tests, scan tools, and fuel return checks without removing it from the engine.
What is the easiest way to check a bad injector?
The easiest way is a cylinder cut-out test, which shows whether the engine performance changes when each injector is disabled.
Do injector fault codes always mean injector failure?
No, injector fault codes can also be caused by wiring issues, fuel pressure problems, or ECM communication faults.
Can bad fuel pressure mimic injector problems?
Yes, unstable or low fuel pressure can create symptoms that look exactly like a failing injector.
Conclusion
Testing a diesel fuel injector without removing it is one of the most effective ways to diagnose engine problems before spending on unnecessary replacements. By combining engine behavior observation, cylinder cut-out testing, fuel pressure checks, and ECM scanning, you can accurately identify whether the injector, wiring, or ECM is responsible.
A structured diagnostic approach not only saves money but also prevents repeated failures and downtime. For reliable diesel engine components and professional-grade replacement solutions in the USA, JJ Engine Parts provides trusted products built for real-world heavy-duty performance.
