If you work on heavy-duty diesel trucks, you already know that not all fuel injection systems are built the same. Common rail vs. unit injector diesel systems are the two dominant designs you will encounter, and the differences between them affect everything from how you diagnose faults to how you source parts.
This guide explains exactly how each system works, which trucks use which, where they fail differently, and what that means when you are standing in the service bay trying to make the right call.

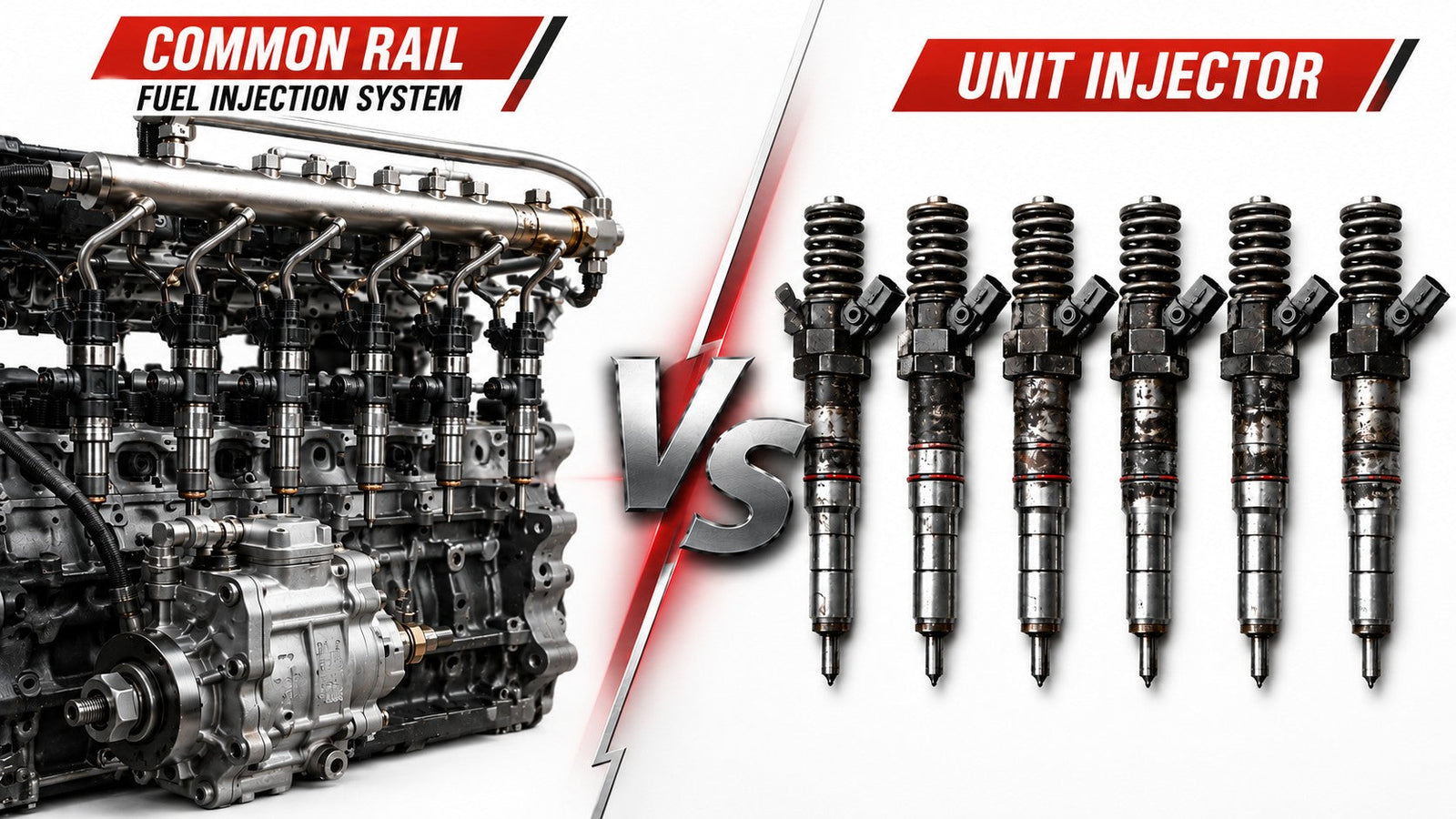

Common Rail vs Unit Injector Diesel: The Short Answer
Here is the simplest way to understand the difference:
- Common rail systems use a shared high-pressure fuel rail that supplies all injectors simultaneously. Each injector fires electronically when the ECM sends the signal.
- Unit injector systems combine the pump and injector into a single unit per cylinder. Each injector generates its own pressure mechanically, driven directly by the camshaft.
Both systems do the same job: deliver pressurized fuel into the combustion chamber at precisely the right moment. But they go about it very differently, and those differences matter when something goes wrong.
How Does a Common Rail Injection System Work?
In a common rail system, a high-pressure pump pressurizes fuel and feeds it into a shared accumulator, the rail. That rail holds fuel at a constant pressure, typically between 20,000 and 30,000+ PSI, depending on the engine.
When the ECM signals an injector to fire, a solenoid or piezoelectric actuator opens the injector valve and fuel sprays directly into the combustion chamber. The ECM controls injection timing, duration, and the number of injections per cycle, which is why modern common rail engines can execute pilot, main, and post-injection events in a single combustion stroke.
Key characteristics of common rail systems:
- Injection pressure is independent of engine RPM
- Multiple injection events per cycle (pilot, main, post) improve combustion efficiency and reduce noise
- Highly dependent on fuel cleanliness, tolerances inside common rail injectors are extremely tight
- ECM has direct control over every injection event, which also means fault codes are specific and useful for diagnosis
Most current-generation platforms, including Cummins ISX15, Detroit DD15, Volvo D13, and PACCAR MX-13, run common rail systems.
You can also explore other topics, such as how to test a diesel fuel injector.
How Does a Unit Injector System Work?
Unit injectors work differently. Instead of drawing from a shared rail, each cylinder has its own self-contained injector that both pressurizes and injects fuel in one unit.
The camshaft drives a rocker arm that actuates the injector plunger, building pressure inside the unit itself. When that pressure overcomes the needle valve spring, fuel is injected. The ECM controls injection timing through a solenoid that governs when the injector actually fires, but the pressure generation is entirely mechanical.
Key characteristics of unit injector systems:
- Injection pressure is linked to engine RPM and camshaft speed
- Mechanically robust, with no high-pressure external rail or pump to fail separately
- More forgiving of minor fuel quality issues than common rail
- Injector adjustment (timing and trim) is done per cylinder, which matters at high mileage
Detroit Diesel parts applications, particularly the Series 60, DDEC-IV, and older DD platform trucks, are some of the most well-known unit injector systems in North American heavy trucking.
Cummins engine parts applications on older N14 and M11 platforms also used unit injector designs before the transition to common rail.
Common Rail vs Unit Injector: Head-to-Head Comparison
Let's take a look:
Performance and Fuel Efficiency
Common rail wins here, and it is not particularly close. The ability to fire multiple injection events per cycle gives common rail engines a significant edge in combustion efficiency, power density, and emissions compliance.
Unit injector systems perform well for their era, but they are limited to a single injection event per cycle, which means less precise control over combustion shape and higher NOx output at equivalent power levels.
Durability and Mechanical Reliability
This is where unit injectors have traditionally had the edge. The design is simpler: fewer external components, no high-pressure rail, and no separate HP pump. When one injector fails, the others are unaffected.
Common rail systems are more sensitive to fuel contamination. A single piece of debris at 30,000 PSI can damage an injector tip in seconds. However, with clean fuel and proper maintenance, modern systems can achieve similar durability, often reflected in real-world diesel fuel injector lifespan miles that exceed 100,000 to 200,000 miles.
Diagnosis and Fault Finding
Common rail systems are actually easier to diagnose with modern tools. The ECM monitors each injector's performance in real time and generates specific fault codes that point directly to the problem cylinder or component.
For example, Cummins ISX fuel injector codes, such as SPN 651 through 656, identify specific cylinder injector faults and return flow issues with enough precision to confirm which injector to replace before the engine is ever opened.
Unit injector diagnosis is more hands-on. Cylinder cut-out tests, injector return flow checks, and mechanical timing verification are the primary tools. It requires more experience to diagnose accurately, but the process is straightforward for a seasoned diesel mechanic.
Parts Availability and Cost
Both systems have strong parts availability through specialist diesel parts suppliers. Common rail injectors tend to carry a higher unit cost given their complexity. Unit injectors for Detroit Series 60 and Cummins N14 platforms remain widely available as both new and tested used parts, making them cost-effective to source even years after production.
The fuel injector for sale options you can access matter as much as the part itself. A specialist supplier that can cross-reference by OEM part number and confirm compatibility for your specific engine variant is far more valuable than a general marketplace listing at a lower price.
Which Trucks Use Common Rail and Which Use Unit Injectors?
Here is a quick reference by platform:
- Cummins ISX, ISX15, ISM, ISL9: Common rail (XPI system on ISX15)
- Cummins N14, M11, ISC (pre-2003): Unit injectors
- Detroit DD13, DD15, DD16: Common rail (ACRS system)
- Detroit Series 60 (pre-2008): Unit injectors (DDEC controlled)
- Volvo D13, D11: Common rail
- PACCAR MX-13, MX-11: Common rail
- Caterpillar C15, C13 (pre-ACERT): Unit injectors (HEUI hydraulic-electronic on some variants)
- Mack MP7, MP8: Common rail
If you are unsure which system your engine runs on, check the engine dataplate or OEM service documentation. The injection system type will determine your entire diagnostic and sourcing approach.
Frequently Asked Questions
What is the main difference between common rail and unit injector diesel systems?
Common rail systems use a shared high-pressure fuel rail with electronic control, while unit injectors generate pressure individually using a camshaft.
Which injection system is easier to repair?
Unit injectors are usually easier to repair mechanically, while common rail systems are easier to diagnose electronically but require more precision.
Does Cummins use common rail or unit injectors?
Cummins uses both, with modern engines using common rail and older engines using unit injectors.
What causes common rail injectors to fail faster than unit injectors?
Common rail injectors fail faster mainly because their tighter tolerances make them more sensitive to fuel contamination.
