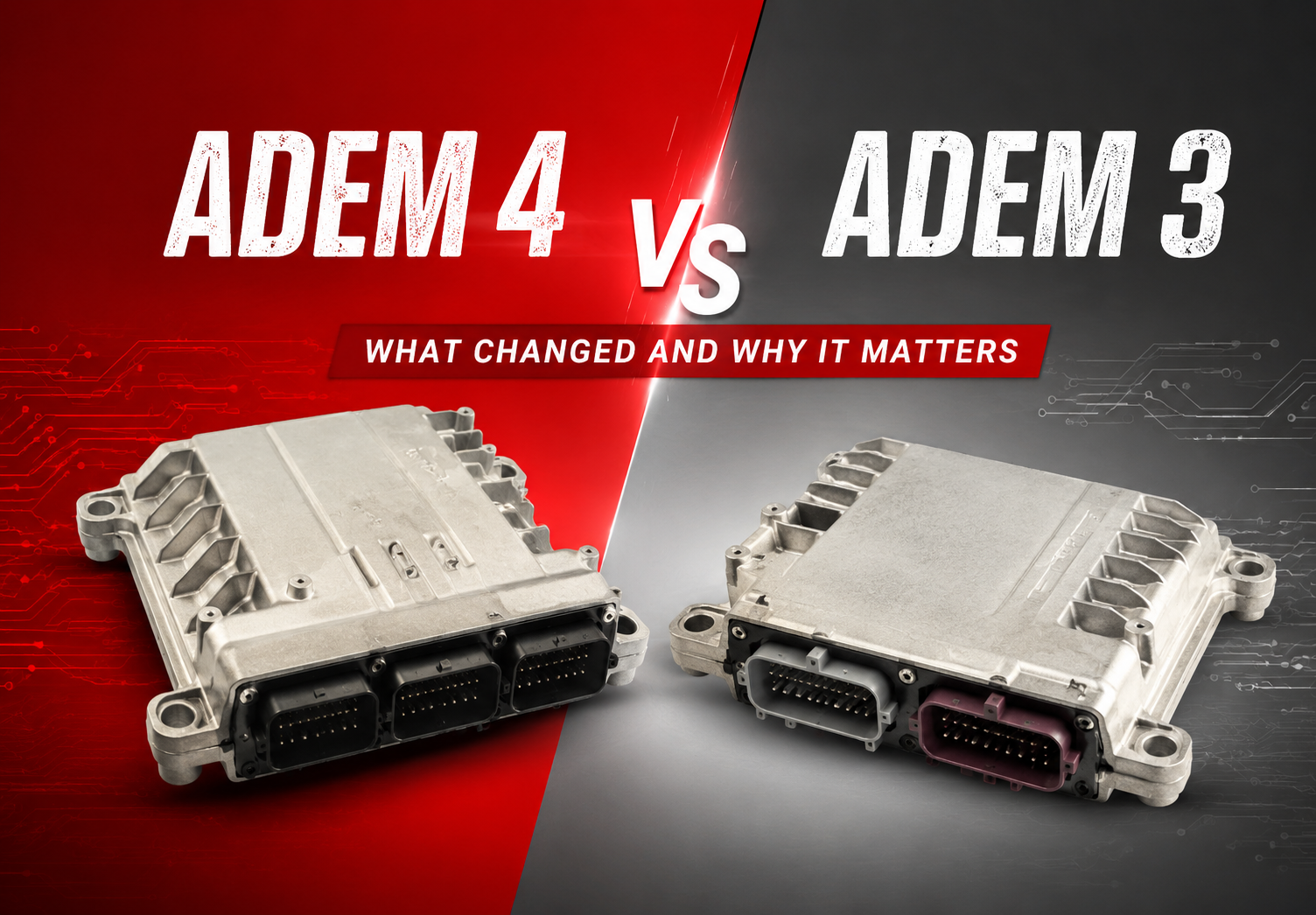

Caterpillar ADEM 4 vs ADEM 3 ECM: What Changed and Why It Matters

The biggest difference between the Caterpillar ADEM 4 vs. ADEM 3 ECM comes down to connector design and processing power. ADEM 3 uses two 70-pin connectors, while ADEM 4 features one 70-pin input connector and one 120-pin output connector, providing significantly greater control capacity. That single hardware shift affects everything from diagnostics to which Caterpillar engine parts will actually bolt up and communicate correctly on your engine.

If you're trying to identify, replace, or source the right module for a Cat engine, understanding this generational split can save you a wasted purchase, a failed installation, and hours of diagnostic time.

What Is a Caterpillar ADEM ECM, and Why Does the Generation Matter?

Every Caterpillar diesel engine built since the mid-1990s relies on an Advanced Diesel Engine Management (ADEM) module to govern fuel timing, injection, and monitoring. But not every ADEM ECM is built the same way, and mixing up generations is one of the most common mistakes shops make when replacing a module.

• ADEM II was the earliest flash-programmable version, using two 40-pin connectors and roughly 128k of memory.
• ADEM III (A3) followed with a major jump in memory and processing power, plus flash programming through Cat ET's WinFlash tool.
• ADEM A4 replaced the "ADEM" naming convention on newer platforms and expanded to 190 total pins across two connectors.

Knowing which generation your engine originally shipped with is the first step before you even start shopping for a replacement.

Caterpillar ADEM 4 vs ADEM 3 ECM: What Actually Changed?

The move from ADEM 3 to ADEM 4 wasn't cosmetic; it reflects Caterpillar's response to tighter emissions rules and growing demand for more inputs and outputs per engine. Both generations support flash programming, but the way they handle data, connectors, and system integration is noticeably different.

• Connector layout: ADEM 3 typically uses two 70-pin connectors; ADEM 4 uses one 70-pin and one 120-pin connector for 190 total pins.
• Processing capacity: ADEM 4 handles more sensor inputs and output channels simultaneously, supporting more advanced emissions and monitoring strategies.
• Emissions compatibility: ADEM 4 was built with Tier 3/Tier 4 and later on-highway emissions requirements in mind, while ADEM 3 was designed around earlier emissions tiers.
• Cooling design: Many ADEM 3 modules are fuel-cooled by default, while some ADEM 4 platforms offer an optional air-cooled configuration.
• Software and calibration files: Flash files are not interchangeable between generations, and even within ADEM 3, there are multiple circuit board revisions that require matching software versions.

Why Does This Matter for Repairs and Replacement Parts?

Because ADEM 3 and ADEM 4 modules are not interchangeable, installing the wrong generation, or even the wrong board revision within the same generation, can leave an engine unable to communicate, start, or pass a flash update. This is exactly why matching by engine model, serial number, and part number matters more than matching by connector count alone.

• Two 70-pin ADEM 3 ECMs from different engine families (like a C7 versus a C10) may not be interchangeable even with reprogramming.
• On-highway and off-highway ECMs often use different communication protocols, so a module built for one application will not simply function in the other.
• Reusing an incompatible module is one of the leading reasons technicians assume a diesel ECM is bad or needs a reflash when the real issue is a mismatched part.
• Sourcing a correctly matched module the first time avoids repeat labor, repeat diagnostics, and repeat downtime.

How Do I Know Which ADEM Generation My Engine Needs?

Most confusion around Caterpillar ADEM 4 vs ADEM 3 ECM selection comes from assuming pin count alone tells the whole story. In reality, the safest way to confirm compatibility is to work backward from your engine's identification numbers rather than the ECM's physical appearance.

• Locate your engine's serial number prefix and full model designation before searching for a replacement.
• Cross-reference the original ECM's part number rather than relying on visual similarity between modules.
• Confirm whether your application is on-highway or off-highway, since protocol differences (ATA versus CDL versus J1939) affect compatibility.
• When in doubt, share your engine details with a parts specialist who can verify fitment before you buy.

What Should I Look for When Buying a Replacement ADEM ECM?

A used or new ECM is only worth buying if it has been verified against your exact application. Skipping this step is how shops end up with a shelf full of modules that almost fit.

• Confirm the ECM has been inspected and tested, not just pulled and resold as-is.
• Match connector type, pin count, and cooling style to your original module.
• Ask whether the seller can confirm the flash file or software version compatibility.
• Look for sellers who specialize in Cat ECM for sale listings with documented part numbers rather than generic salvage yard inventory.

Where Can I Buy a Reliable Caterpillar ADEM ECM?

Once you know which generation and configuration your engine requires, the next step is finding a supplier who can verify the part before it ships. JJ Engine Parts stocks inspected new and used ECMs for Caterpillar engines, alongside other major diesel brands, so shops and owner-operators aren't left guessing.

• Every used ECM is inspected before it leaves our facility.
• Our team can help confirm fitment using your engine's serial number, model, or original part number.
• We carry a broader inventory of diesel ECM for sale options across Cummins, Detroit, Volvo, Mack, and PACCAR platforms as well.
• Fast nationwide shipping means less downtime waiting for the correct part.

Frequently Asked Questions

Is an ADEM 4 ECM a direct upgrade from ADEM 3?

No. ADEM 4 is a different hardware and software platform built for later engine and emissions applications, not a drop-in upgrade for engines originally equipped with ADEM 3.

Can an ADEM 3 ECM be reflashed to work like an ADEM 4?

No. The two platforms use different connectors, pin configurations, and flash file structures, so reflashing cannot convert one generation into the other.

How do I know if my ADEM ECM issue is a hardware failure or a programming issue

Some symptoms that look like a failed module are actually related to outdated calibration files or a mismatched part; if you're unsure, it's worth reviewing what separates a diesel ECM from a situation that needs reflash before replacing the unit.

Does ADEM generation affect injector or fuel system compatibility?

It can. Some ADEM configurations pair with specific injector types and mounting setups, which is also why issues like Caterpillar C15 injector cup replacement are often researched alongside ECM questions during a full engine diagnosis.

Is this ADEM 3 vs ADEM 4 comparison unique to Caterpillar?

Not entirely; other manufacturers have gone through similar control module generational shifts, which is part of why comparisons like PACCAR MX-13 EPA10 vs EPA17 come up in the same conversations among fleet technicians.

Final Thoughts

Understanding Caterpillar ADEM 4 vs ADEM 3 ECM differences isn't just technical trivia; it directly affects which replacement part will actually work on your engine. Matching the correct generation, connector configuration, and software version the first time is the difference between a quick repair and a repeat trip to the shop.

If you're ready to source a verified module, our team at JJ Engine Parts can help confirm the right fit using your engine's serial number or part number before you buy.
