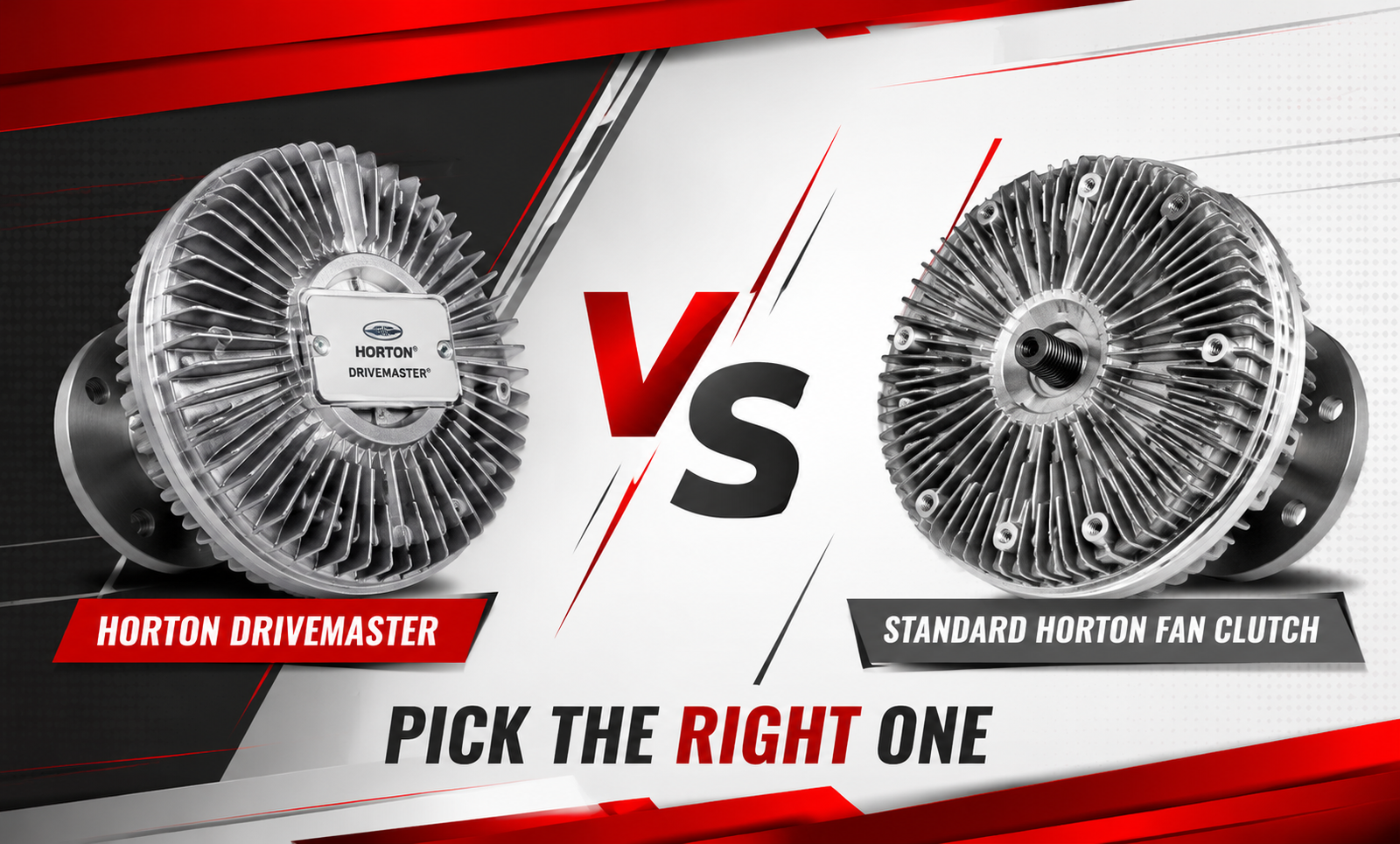

Horton DriveMaster vs Standard Horton Fan Clutch: Pick the Right One

The core difference in the Horton DriveMaster vs. standard fan clutch comparison is engagement type and duty rating. DriveMaster is an air-engaged, on/off clutch built for higher heat and higher horsepower applications, while a standard Horton fan clutch (like the S or HT/S viscous style) uses a simpler bimetallic or spring-actuated design suited to lighter-duty cooling needs. Choosing between them affects fuel economy, noise level, and how long the part lasts under your specific duty cycle. If you're replacing a failed clutch or upgrading an aging cooling system, knowing which design fits your engine and application will save you from buying the wrong part twice.

What Is a Horton DriveMaster Fan Clutch?

The DriveMaster line was built around a simple idea: give heavy-duty trucks and buses a fan clutch that fully engages or fully disengages, with no in-between wear points to fail over time. That binary design is part of why DriveMaster and its upgraded DM Advantage version remain common in high-heat, high-horsepower cooling systems.

• DriveMaster uses an air-engaged, on/off design rather than a continuously variable viscous system.
• The upgraded DM Advantage version uses a double-row angular contact bearing with more rolling elements per row, giving it higher load capacity than older DriveMaster designs.
• It's built with dual-lip Viton seals and heat-resistant grease for extended service life in demanding underhood environments.
• DriveMaster and DM Advantage clutches are commonly rated for engines in the 250–600 HP range.

What Counts as a "Standard" Horton Fan Clutch?

When technicians say "standard" Horton fan clutch, they're usually referring to the S or HT/S-style viscous fan drives rather than the on/off DriveMaster line. These have been the go-to option for decades because they're straightforward, affordable, and easy to service in the field.

• Standard viscous clutches use a bimetallic coil sensor that reacts to underhood temperature and modulates silicone fluid flow.
• They offer a more gradual, variable engagement compared to DriveMaster's binary on/off cycle.
• Standard clutches typically use simpler deep-groove bearings, which carry a lower load rating than DriveMaster's angular contact design.
• They remain popular for moderate-duty applications where ultimate cooling precision isn't critical.

Horton DriveMaster vs Standard Horton Fan Clutch: Key Differences

Both designs exist because no single fan clutch fits every application. The right choice usually comes down to horsepower, operating temperature, and how much precision your cooling system actually needs.

• Engagement style: DriveMaster is on/off and air-engaged; standard clutches are viscous and modulate more gradually.
• Load capacity: DriveMaster's angular contact bearing design handles higher thrust loads than the standard clutch's deep-groove bearings.
• Noise level: Standard viscous clutches tend to run quieter since they rarely reach full engagement; DriveMaster can be noticeably louder at full engagement since it's essentially on or off.
• Application fit: DriveMaster suits higher-heat, higher-horsepower vocational trucks and buses, while standard clutches are common across a broader range of moderate-duty on-highway applications.
• Serviceability: Standard clutches are known for simple field servicing, while DriveMaster's more advanced bearing and seal design often means fewer replacements over its service life despite a more complex build.

How Do I Know Which Fan Clutch My Truck Needs?

Matching the wrong fan clutch style to your application is one of the most common causes of premature cooling system wear. Before ordering a replacement, it helps to confirm both the part number and the reason your original clutch failed.

• Check the part number pin-stamped on the front of the clutch, usually near the fan pilot or fan-mounting surface.
• Confirm your engine's horsepower rating against the clutch's typical operating range.
• Consider your duty cycle: constant high-heat operation favors DriveMaster, while lighter or intermittent-duty routes often do fine with a standard clutch
• If your existing clutch failed early, it's worth reviewing whether the issue was the clutch itself or a related wiring or solenoid problem before assuming a straight swap will fix it.

Why Does Fan Clutch Selection Matter for Fuel Economy and Engine Life?

A mismatched fan clutch doesn't just wear out faster; it can quietly rob fuel economy and put unnecessary strain on the engine long before it fails completely. This is why fleet managers pay close attention to clutch type, not just price.

• An improperly engaged or stuck clutch increases parasitic horsepower draw, which lowers fuel economy.
• Overheating from an undersized or mismatched clutch can accelerate wear on hoses, belts, and the water pump.
• Choosing the correct duty-rated clutch the first time reduces the odds of a repeat failure and repeat downtime.
• Technicians troubleshooting a fan clutch stuck engaged diesel issue often find the root cause traces back to the wrong clutch style for the application, not a random defect.

What Should I Look for When Buying a Replacement Fan Clutch?

Once you've confirmed whether your application calls for a DriveMaster-style on/off clutch or a standard viscous unit, the next step is sourcing a part that's actually been verified for your engine.

• Match the part number and fan pilot size to your original clutch rather than relying on appearance alone.
• Ask whether the clutch has been inspected or tested before it ships, especially for used units.
• Confirm bearing style and seal type match your duty cycle needs, not just your budget.
• Look for sellers who list detailed Horton fan clutch options with documented part numbers and application fitment.

Where Can I Buy a Reliable Horton Fan Clutch?

JJ Engine Parts stocks inspected new and used fan clutches for Caterpillar, Cummins, Detroit, and other major diesel platforms, so you're not left guessing whether a part will actually fit before it arrives.

• Every used fan clutch is inspected before it ships.
• Our team can help confirm whether your application calls for a DriveMaster-style or standard viscous clutch.
• Browse our full inventory of fan clutches for sale alongside components for Cummins engine parts and other major brands.
• Fast nationwide shipping helps minimize downtime while your truck is out of service.

Frequently Asked Questions

Is a DriveMaster fan clutch a direct upgrade from a standard Horton clutch?

Not automatically. DriveMaster uses a different engagement style and mounting design, so it's best treated as an application-specific choice rather than a universal upgrade.

Can I replace a viscous clutch with a DriveMaster clutch on the same engine?

Sometimes, but only if the part number, fan pilot, and horsepower rating are confirmed compatible; swapping engagement styles without verifying fitment can cause premature wear or improper cooling.

What's the real difference between an electronic viscous fan clutch and an air-engaged design?

They use different control methods entirely, which is why understanding electronic viscous fan clutch vs air engaged designs is a useful next step before choosing between DriveMaster and standard clutch styles.

My fan clutch isn't engaging at all. Is that a clutch problem?

Not always. A number of no-engagement complaints trace back to fan clutch solenoid wiring problems rather than a failed clutch itself, so it's worth checking wiring and connections before replacing the part.

Do standard Horton fan clutches cost less than DriveMaster clutches?

Generally, yes, since the viscous design is simpler and easier to manufacture and service, though the right choice ultimately depends on your application's cooling and durability needs, not price alone.

Final Thoughts

The Horton DriveMaster vs. standard fan clutch decision comes down to matching engagement style, load capacity, and duty cycle to your specific engine and application. Getting this right the first time means fewer repeat failures, better fuel economy, and less unplanned downtime.
